Ref : 3240

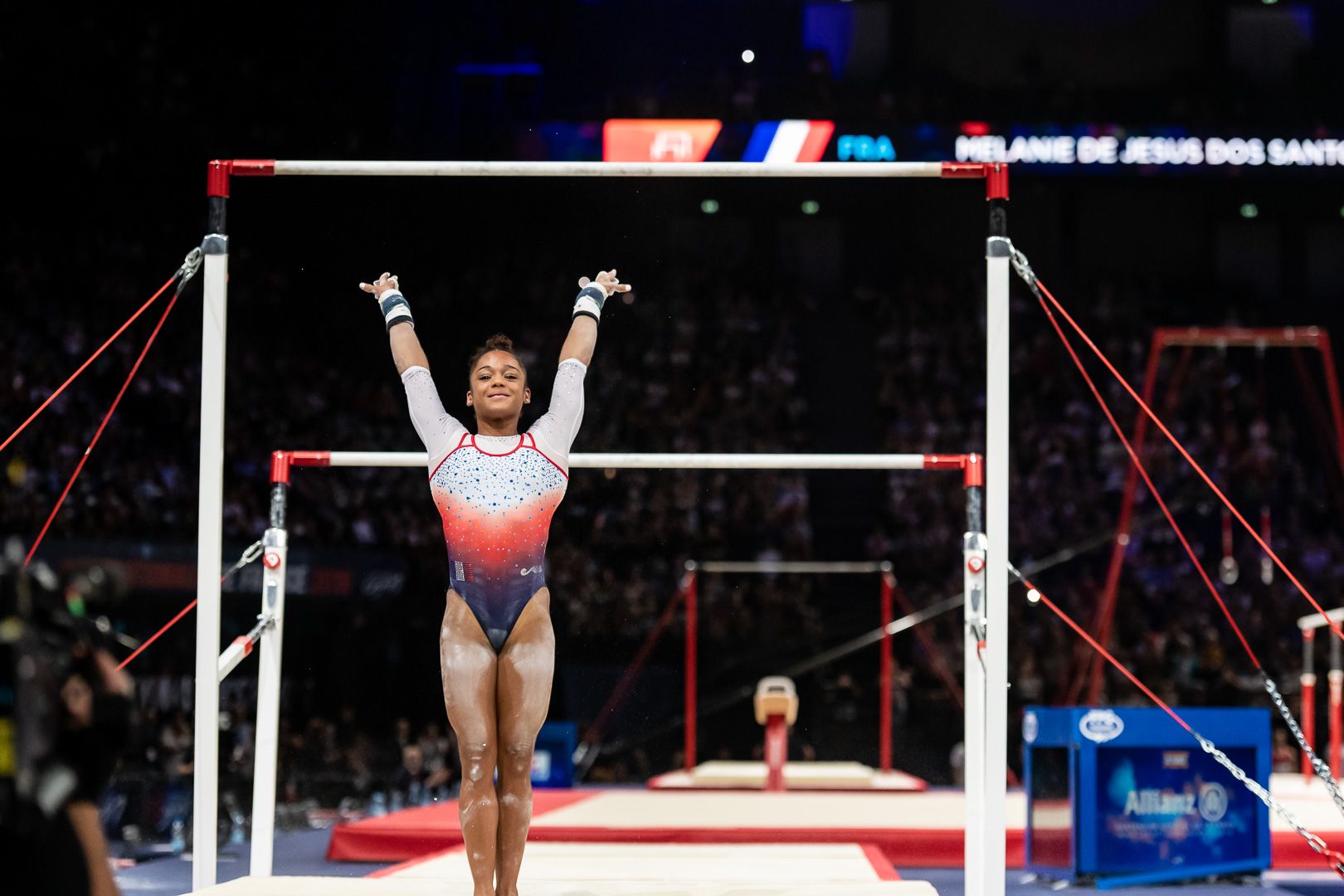

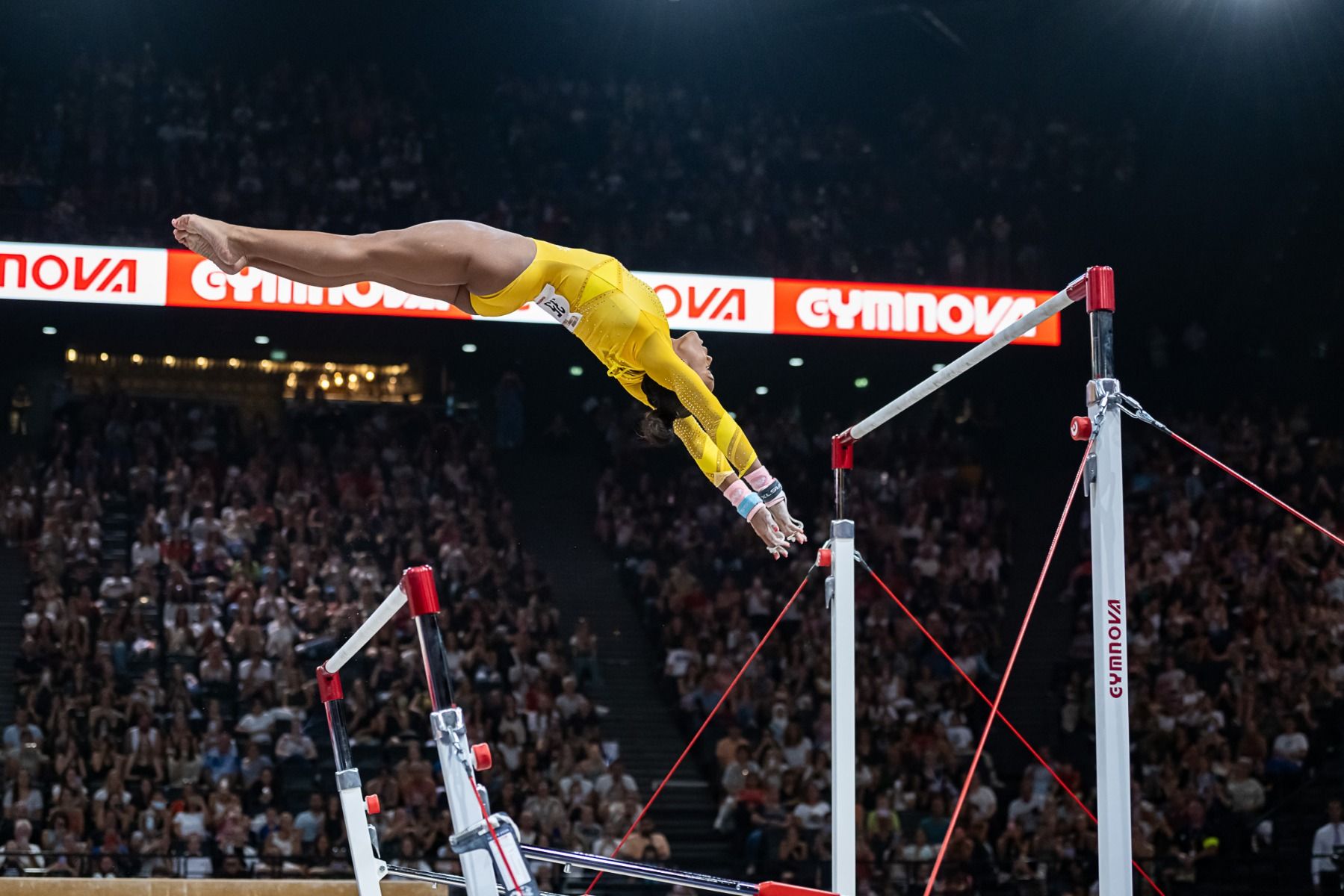

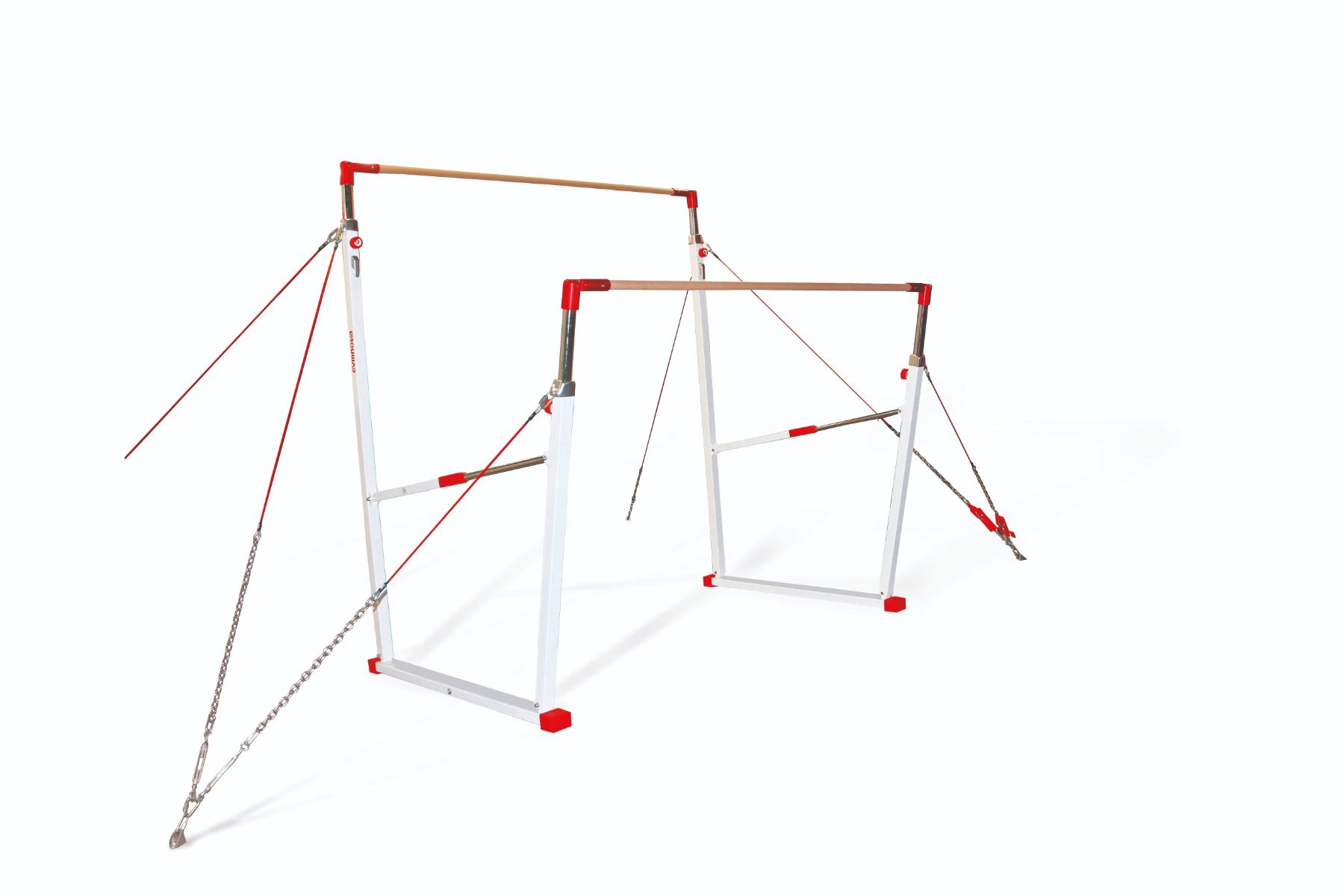

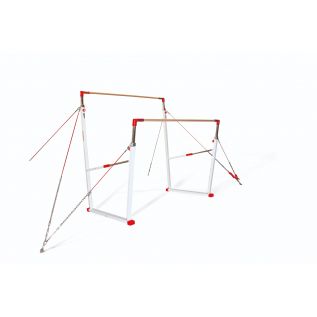

RIO COMPETITION ASYMMETRIC BARS - STANDARD CABLE - NATURAL FIBRE HAND-RAIL - FIG Approved

New competition asymmetric bars have been developed with innovation both in design and in terms of mechanical characteristics.
Designed for easy adjustment of hand-rail height and spacing without the need to alter cable length (adjusts via sliding tubes, ratchets and thumb wheels). Rapid tensioners allow the cables to be assembled and dismantled easily, as well as adjusting their tension.
The low hand-rail can be removed and the high hand-rail can be replaced by a high bar hand-rail for teaching purposes with straps for GAF use.

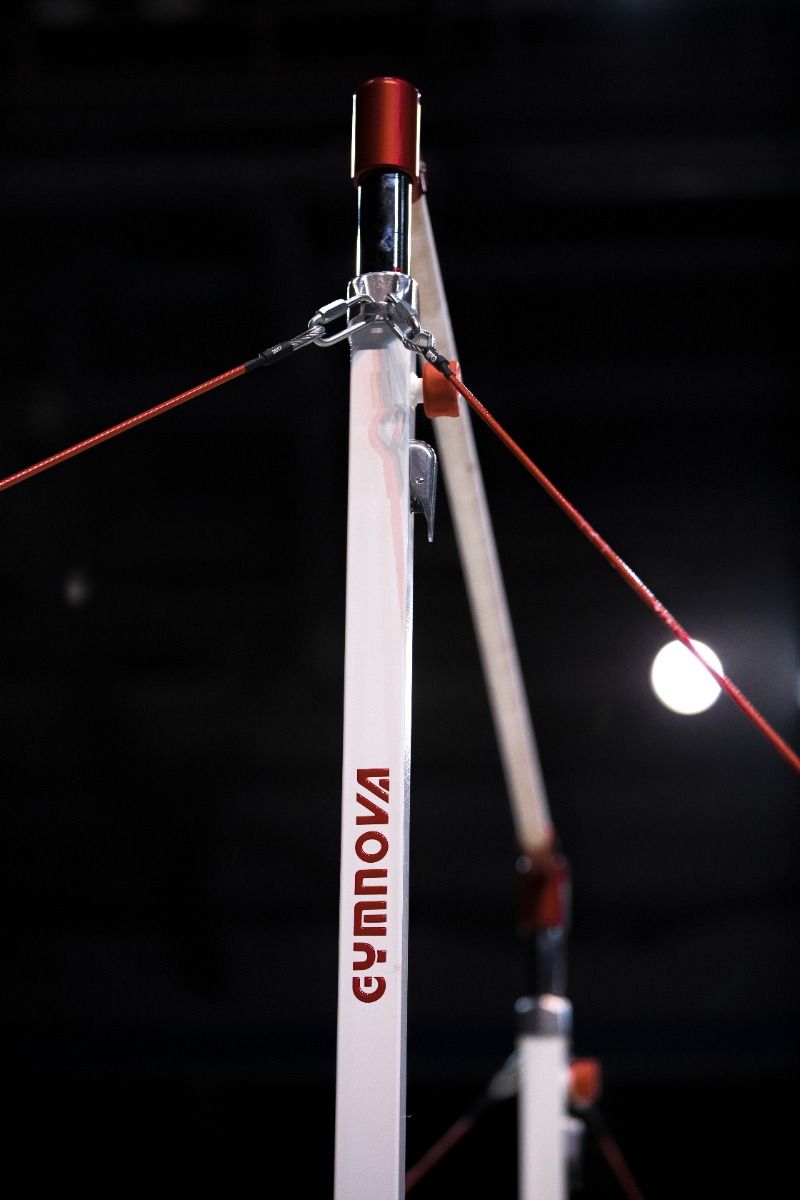

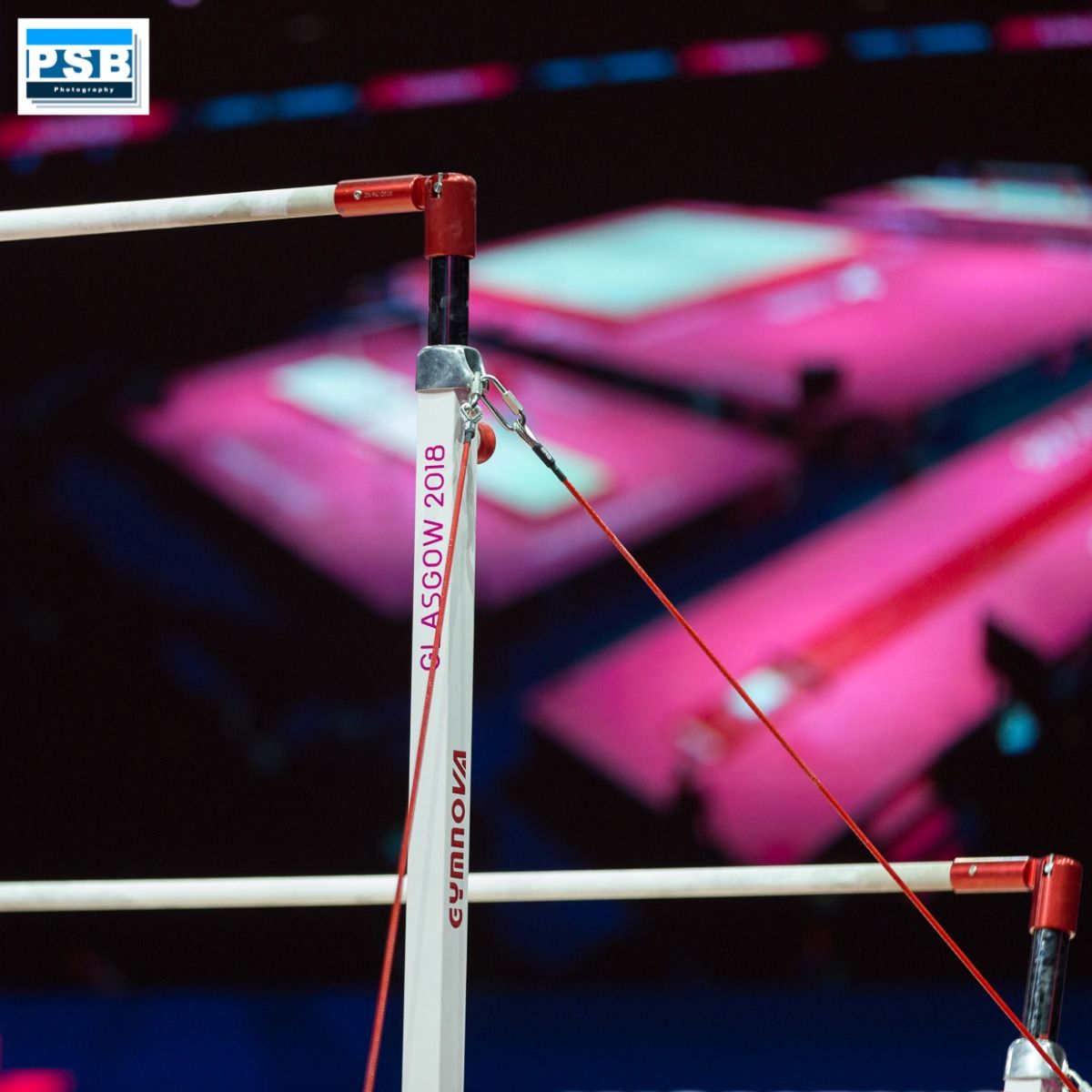

For easy adjustment of our cables and to maintain tension, all of our cabled asymmetric bars are equipped with a single-cable system fitted to the low bar.

£4,201.20 £3,501.00
Link copied

More details

New competition asymmetric bars have been developed with innovation both in design and in terms of mechanical characteristics.
Designed for easy adjustment of hand-rail height and spacing without the need to alter cable length (adjusts via sliding tubes, ratchets and thumb wheels). Rapid tensioners allow the cables to be assembled and dismantled easily, as well as adjusting their tension.
The low hand-rail can be removed and the high hand-rail can be replaced by a high bar hand-rail for teaching purposes with straps for GAF use.
For easy adjustment of our cables and to maintain tension, all of our cabled asymmetric bars are equipped with a single-cable system fitted to the low bar.

Technical features

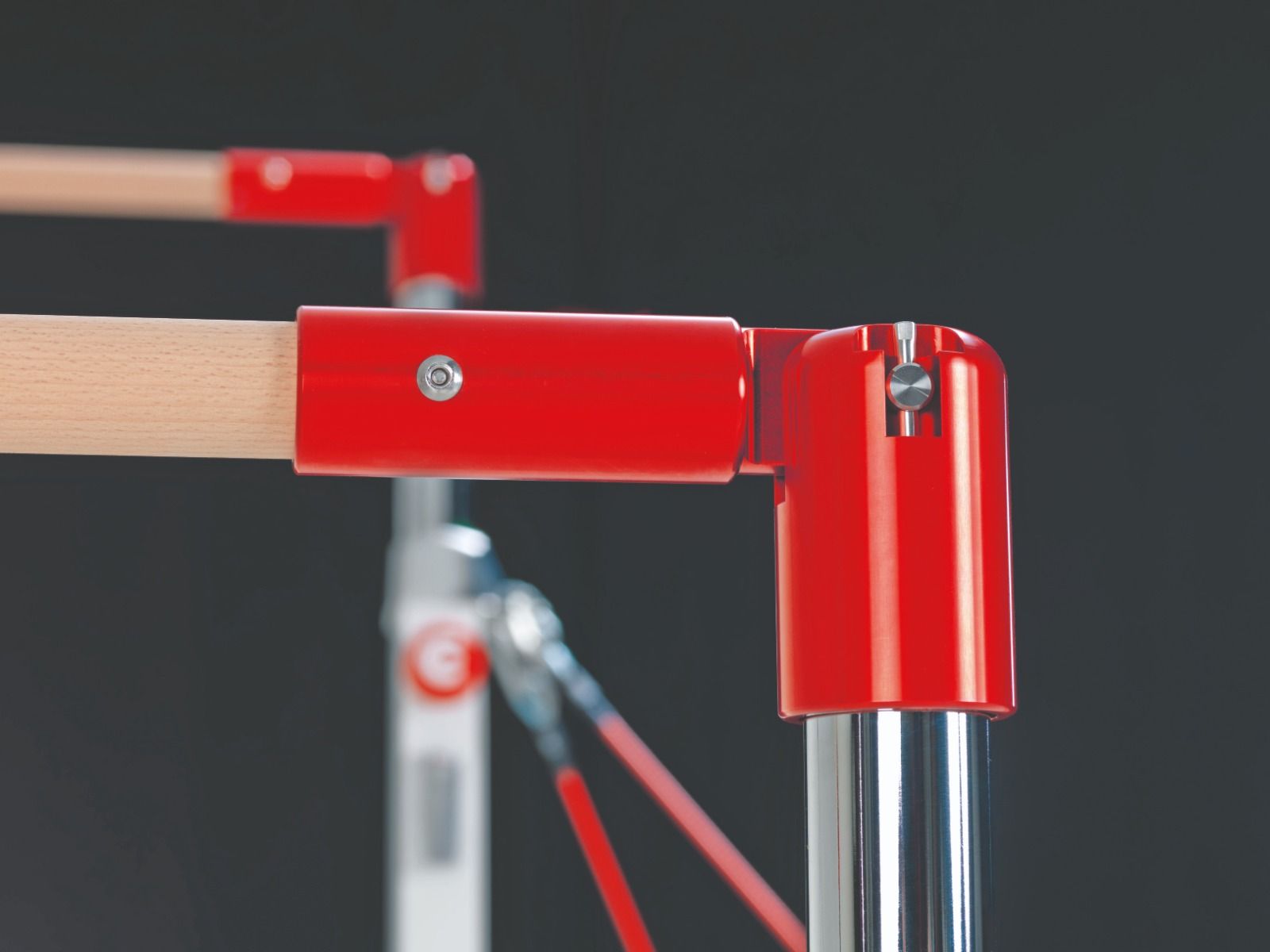

- Natural fibre hand-rail Ref. 3265.
- Standard cable.

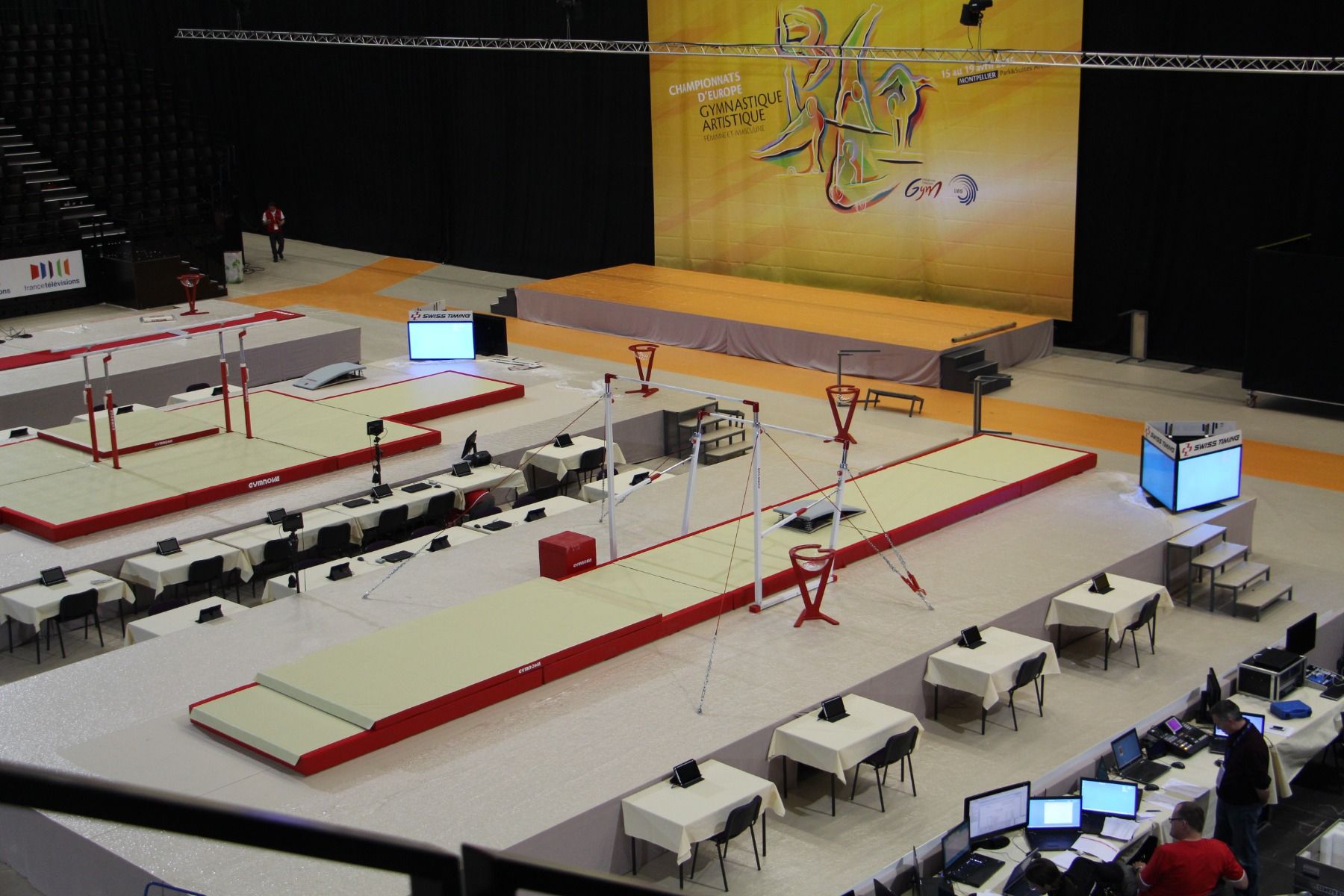

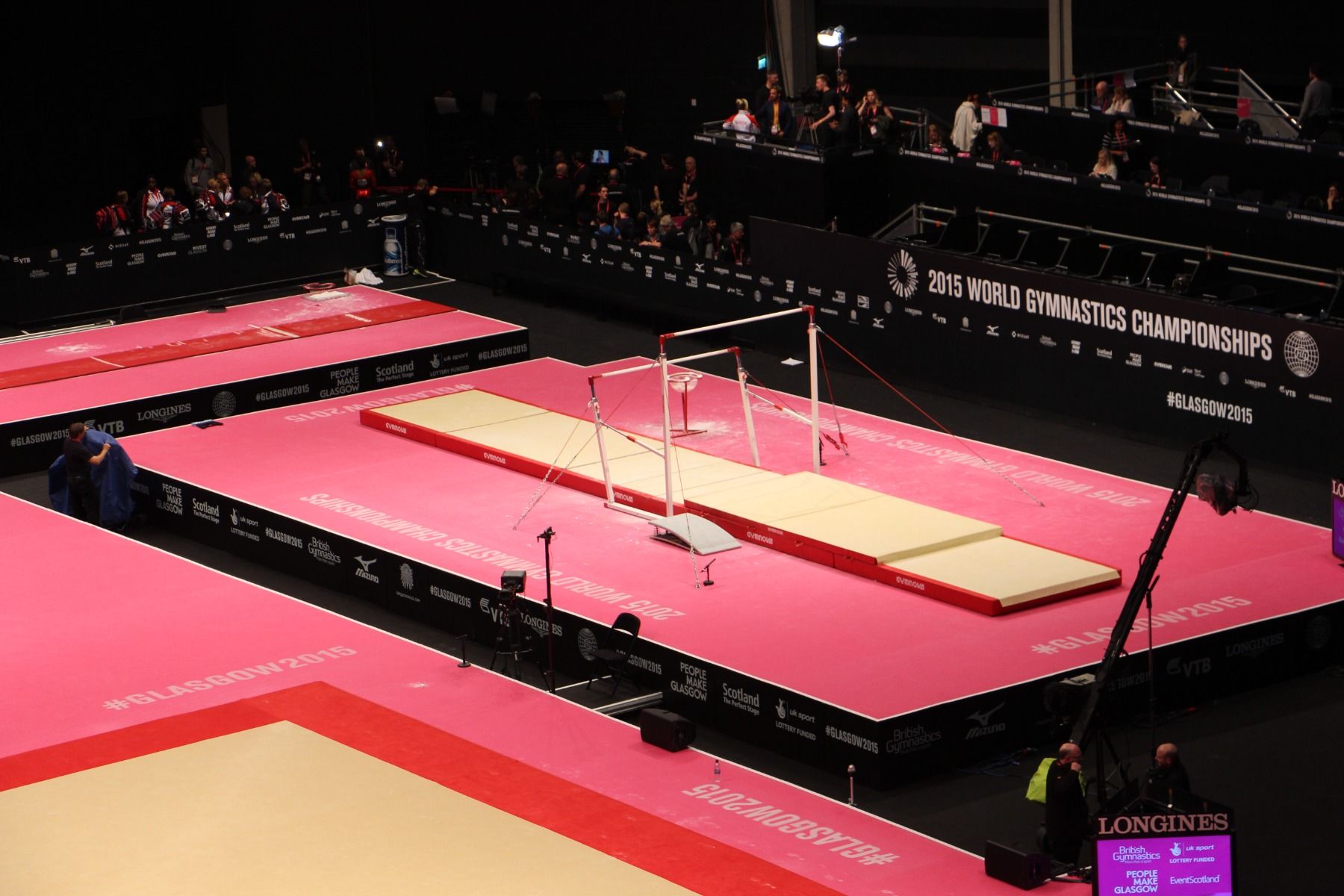

- Floor space = 5.50 x 4 m.
- New graduated width adjusters and uprights with easily identifiable marking for precise FIG positions.
- Low hand-rail adjustable from 1.60 to 1.90 m (in 5 cm increments).
- High hand-rail adjustable from 2.45 to 2.75 m (in 5 cm increments).
- Instant hand-rails adjustment from 1.02 to 2.22 m using graduated spreader from 1.20 to 2.09 m (to set a regulatory height).
Made In France

This product was designed and manufactured in France

FIG certificate

This product is approved by the International Gymnastics Federation
